DIY Hand Crank Generator Science Kit
DIY Hand Crank Generator Science Kit
Couldn't load pickup availability
⚠️ Product Safety & Important Information
At Crazy Toys Master, we encourage all customers to carefully review product information and prioritize safety before purchasing, assembling, handling, or using any item.
Products available through our store may be intended for different age groups and purposes, including recreational activities, hobbies, model building, collectibles, and decoration. Not all products are designed or suitable for children.
Certain items may contain small parts, sharp edges, detachable components, adhesives, tools, or other materials that require careful handling and may present safety risks.
Important Safety Guidelines:
Choking Hazards: Small parts and detachable components may pose choking hazards, especially for young children.
Age Recommendations: Always follow the manufacturer's recommended age restrictions and safety warnings.
Adult Supervision: Children should be supervised by a responsible adult when handling products that may present safety risks.
Assembly & Handling: Follow all provided instructions and exercise caution when handling tools, adhesives, sharp edges, or delicate components.
Product Inspection: Inspect items before use and discontinue use if any component appears damaged, broken, or unsafe.
Intended Use: Some products are designed for adults, hobbyists, or decorative purposes and should not be treated as children's toys.
Safe Storage: Keep small components, packaging materials, and potentially hazardous accessories away from young children.
For Parents & Guardians:
Please ensure that any product purchased for a child is appropriate for their age, abilities, and intended use. Never leave young children unattended with items that may present choking or injury hazards.
Customer Awareness:
Product specifications, materials, intended uses, and safety requirements may vary by manufacturer and individual item. Customers are encouraged to review all available product information and follow applicable safety instructions.
Your safety matters. Please purchase, assemble, and use all items responsibly.
Crazy Toys Master — Build • Create • Discover
ITEM NAME
Mini DIY Hand Crank Generator Light Bulb STEM Science Experiment Kit & Education Model for Children Gift Toy Learning Project
DESCRIPTON
Suitable age: 8+
Product Features:

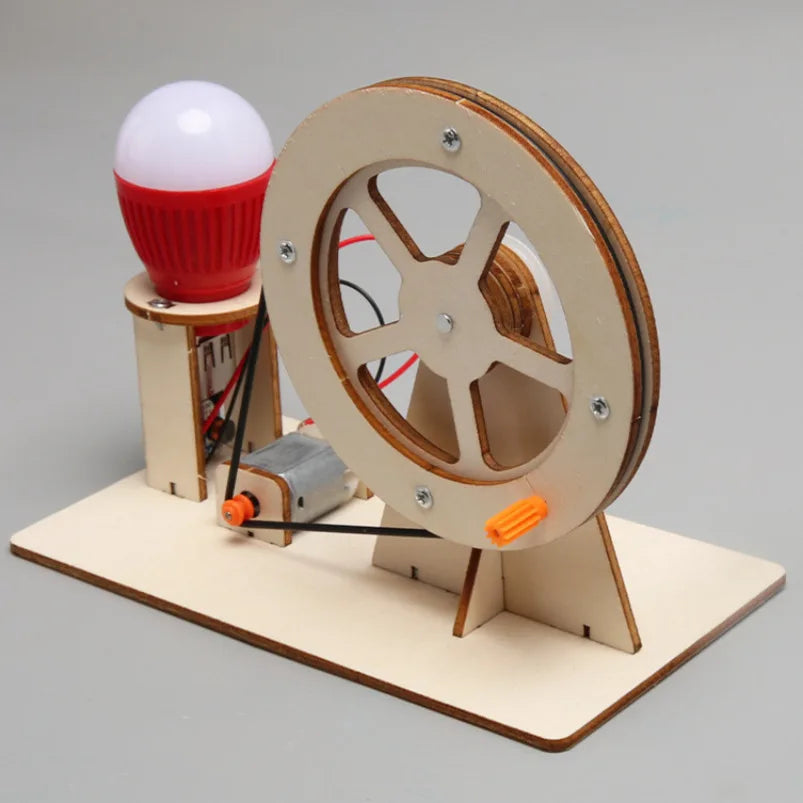

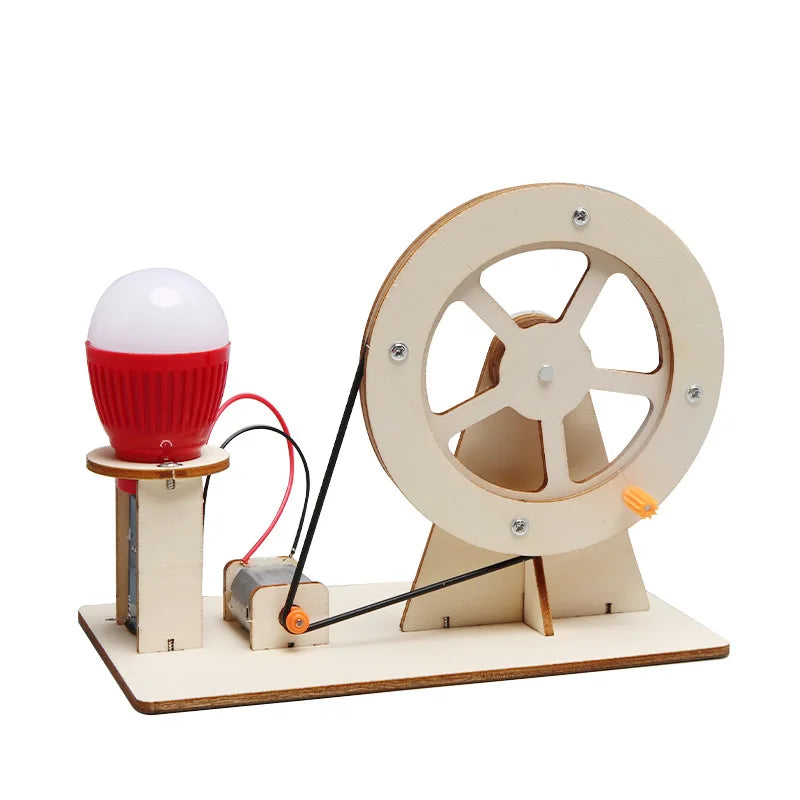

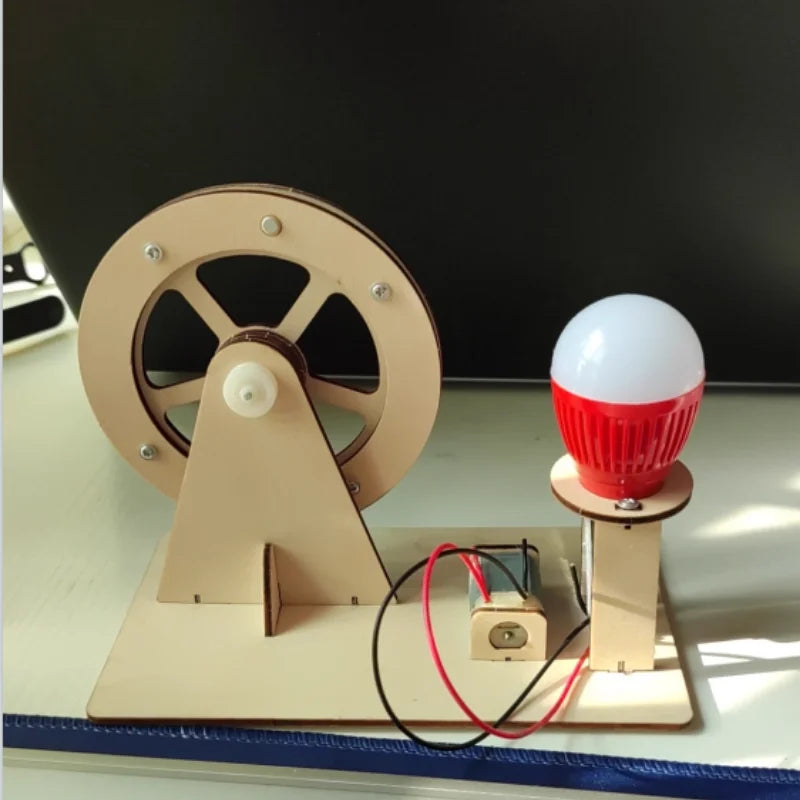

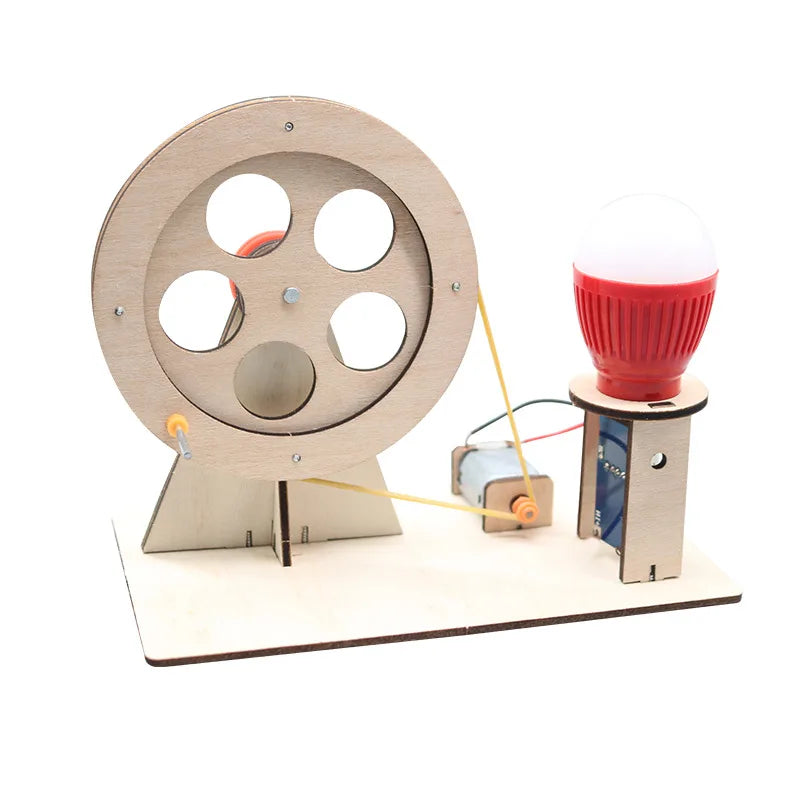

By turning the large disc by hand, the generator is driven to rotate, and the output power is realized.
Can light bulbs.
Features:
Interesting science and education works, exercise manual brain ability, show hand-cranked electricity function, light up low-power bulbs, and can also demonstrate the charging effect of mobile phones
Consequence (because the current is small, it cannot be actually charged)
Step-by-Step Assembly Instructions

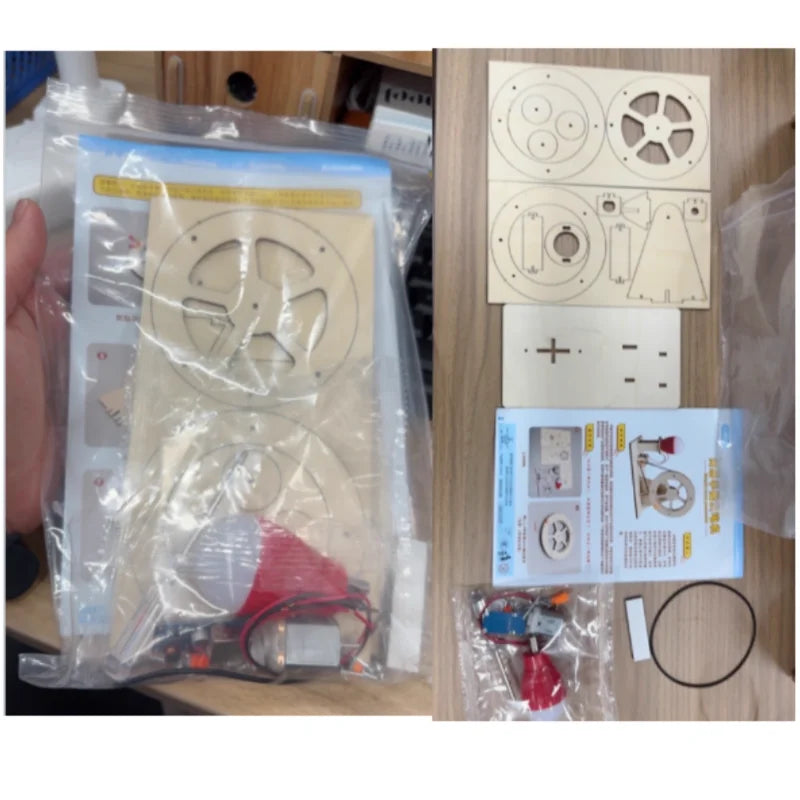

Step 1: Identify All Parts
Lay out all wooden plates, motor module, booster module, LED bulb, belts, screws, nuts, and wires included in the kit.
Step 2: Assemble Main Wheel Plates
Fix Plate 2 and Plate 3 onto Plate 4 using 8mm screws.
Note: Place Plate 2 in the middle layer.
Step 3: Install Long T21 Pin & Large Gear Wheel
Insert the long T21 metal pin through the large gear wheel assembly.
Step 4: Lock Gear with T21 Pin
Push the T21 pin through the center gap of the wheel assembly from Step 3 to secure the 5# wheel plate.
Step 5: Attach 6# Wooden Bracket Plate
Mount the fan-shaped 6# plate onto the wheel assembly.
Step 6: Fit Large Rubber Drive Belt
Loop the large belt around the main crank wheel gear.
Step 7: Install 7# Support Plate
Attach the triangular 7# plate to the wheel assembly as a side support.
Step 8: Build Vertical Lamp Stand (Plates 10 & 11)
Stack and fix Plate 10 and Plate 11 with 7mm screws to form the vertical bulb holder frame.
Step 9: Wire Motor & Booster Module
Connect the motor and voltage booster module with the supplied red & black wires.
Step 10: Fix Motor Assembly to Base Plate 1
Secure the wired motor module onto the cross-marked 1# base plate using 4mm screws.
Step 11: Mount Bulb Stand Frame to Base Plate 1
Fasten the vertical bulb stand (from Step 8) onto base Plate 1 with 7mm screws.
Step 12: Install LED Bulb
Attach the white LED bulb to the top of the vertical stand and connect its wires to the booster module.
Step 13: Attach Crank Wheel Assembly to Base
Mount the full crank wheel unit onto base Plate 1, lock with 7mm screws.
Step 14: Fit Small Rubber Drive Belt
Loop the small belt between the crank wheel gear and the motor drive wheel.
Step 15: Final Full Assembly Check
Verify all wires are connected correctly, belts are tight, and all wooden frames are securely fastened.
Step 16: Install Bottom Rubber Feet
Stick rubber foot pads to the bottom of base Plate 1 to finish assembly.
4. Extended Science Knowledge: Power Generation Types
Thermal Power Plant
Burn fuel to heat water into high-pressure steam. Steam pushes turbines to rotate, converting thermal energy to mechanical energy. Turbines drive generators to turn mechanical energy into electricity.
Hydropower Plant
Flowing water spins generators to transfer energy. Dams are commonly built with stone or concrete barriers for flood control and stable water flow regulation.
Nuclear Power Plant
Nuclear fission inside reactors releases thermal energy. The heat generates steam following the same workflow as thermal power plants; the nuclear reactor replaces coal-fired boilers.
Wind Farm (Wind Power)
Uses wind force to spin turbine generators. Wind power is a clean, renewable energy source.
Tidal Power Plant
A branch of hydropower that captures energy from daily tidal water level rises and falls.
Geothermal Power Plant
Extracts heat from underground hot rock layers, hot springs, and geothermal steam as its primary energy source.
